Firmware Upgrade
Warning!
Please follow the instructions closely or will result permanent damagesto the light!
1
Download and Install */tor v2.5.0" href="http://www.starkled.com/support/kb/accessories/blunova-wireless-controller/stm32-flash-loader-demonstrator-v2-5-0">STM32 Flash Loader Demonstrator v2.5.0
2
Download and Install PL2303 Prolific Driver Installer v1.5.0
3
Download the latest firmware (v1.05) for your StarkLED blunova lights
4
Connect your blunova lightto your PC using the USB cable
Warning! When plug in the USB cableto the light, please handle with great caution and carefulness. DO NOT MOVE THE USB PLUG VERTICALLY.
Warning! DO NOT PLUG IN THE POWER CABLE FOR THE LIGHT!
4
Verify the connection.
You should see a red light inside your blunova light.
Your PC should notice you that it detected new hardware.
5
Find the COM port of your blunova light

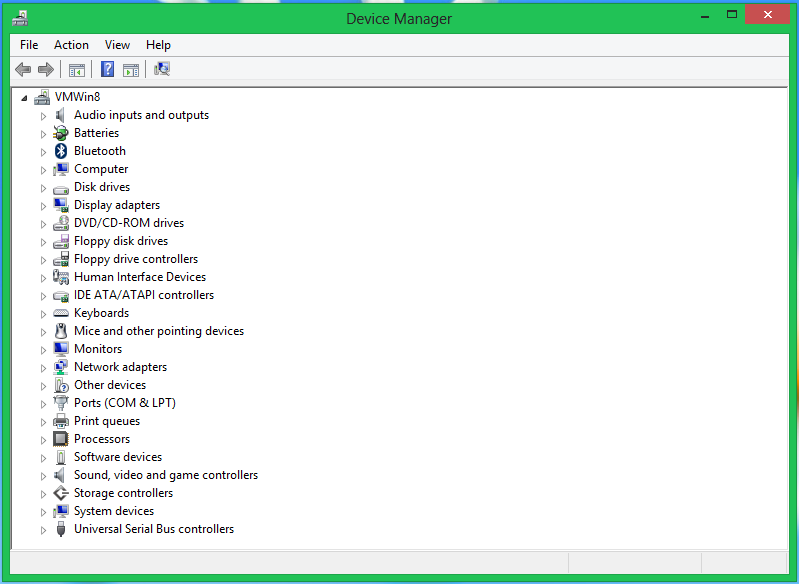

On your PC, Goto Start -> Control Panel -> Device Manager

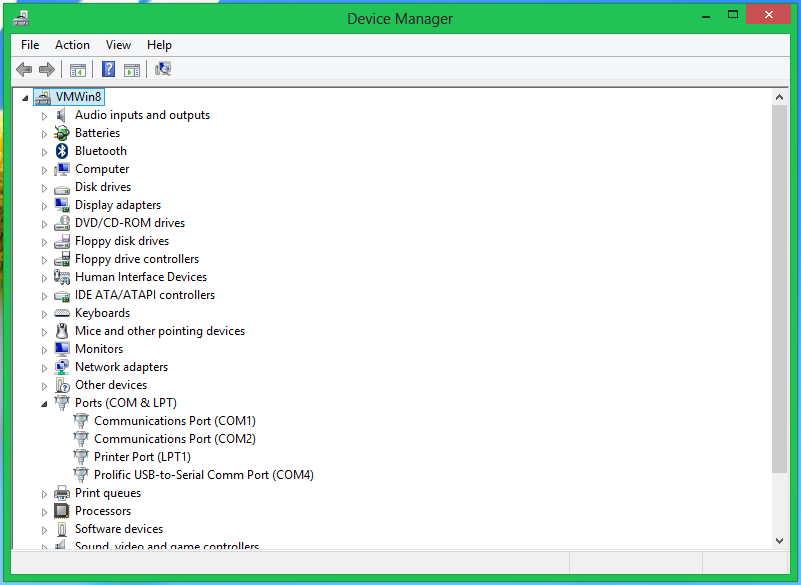

Open the "Ports" section
Write down the port number of "Prolific USB-to-Serial Comm Port" number. In this case, it's "COM4".
6

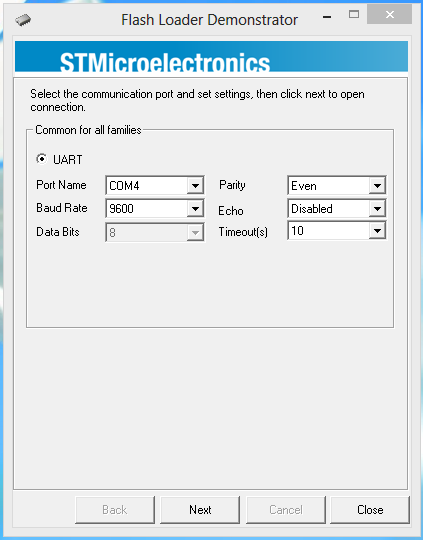

Open Flash Loader Demo
Make sure the settings are set as shown in the image above and change the "Port Name"to the one you just wrote down.
7

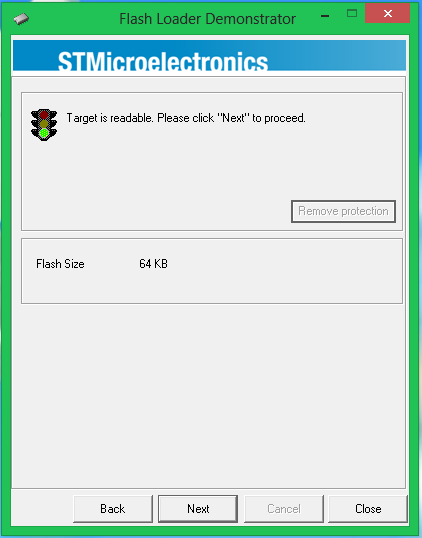

Press "Next"
You should see the software shown as above image.
8

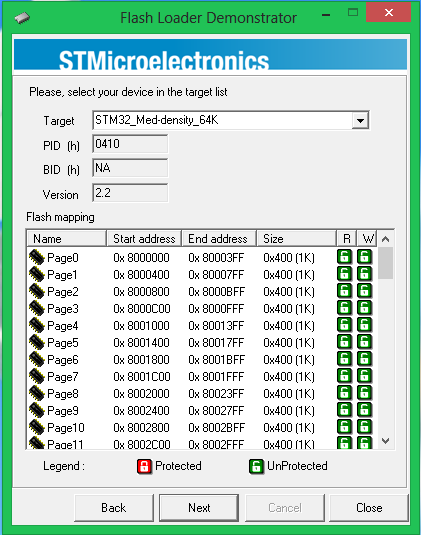

Press "Next" again
You should see the software shown as above image.
9

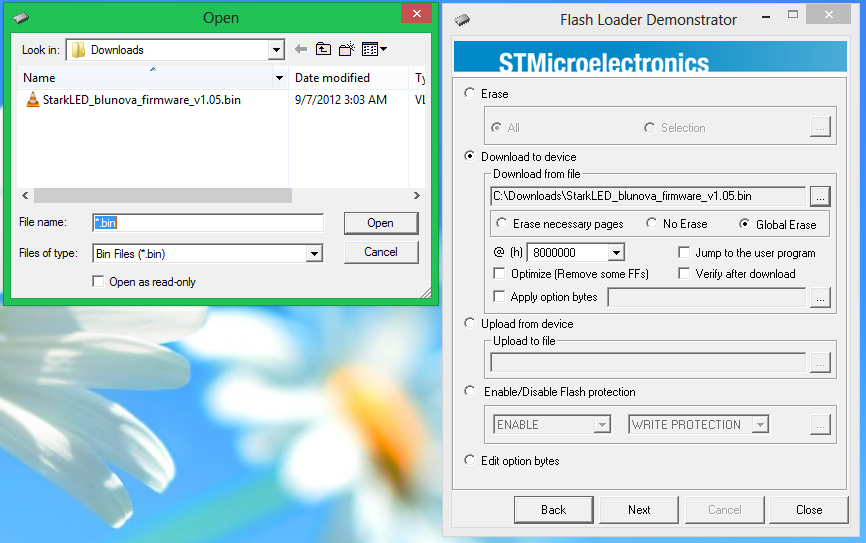

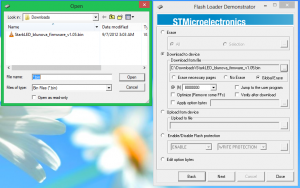

Press "Next" again and choose "Downloadto device" and choose the .bin firmware file
You should see the software shown as above image.
10

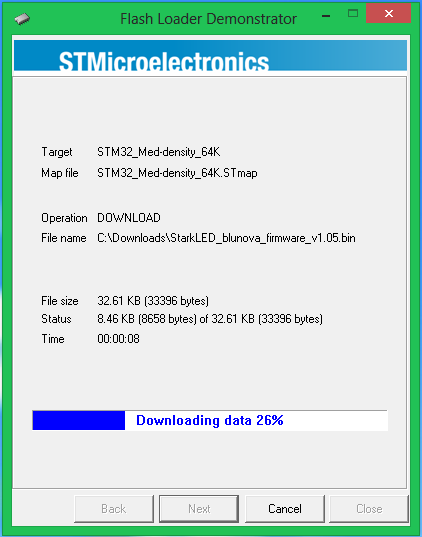

Press "Next" again and start upgrading
You should see the software shown as above image.
11

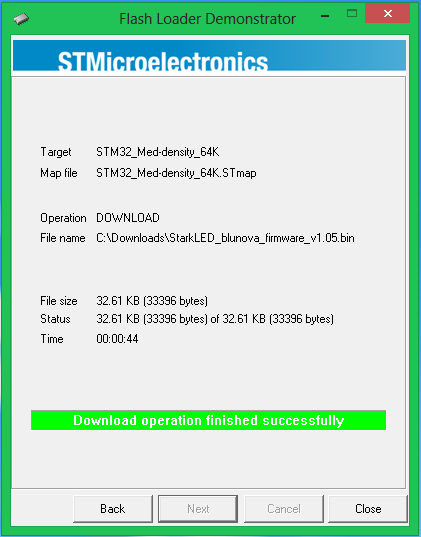

Wait till the upgrading finish
You should see the software shown as above image.
